BQ2011

The BQ2011 is Gas Gauge IC designed by UNITRODE.

Product Overview

UNITRODE

Part number	BQ2011
Manufacturer	UNITRODE
File Size	596.17 KB
Description	Gas Gauge IC
Datasheet	BQ2011-UNITRODE.pdf

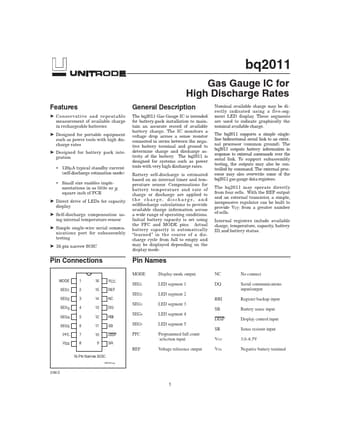

Additional preview pages of the BQ2011 datasheet.

The bq2011 Gas Gauge IC is intended for battery-pack installation to maintain an accurate record of available battery charge.

Conservative and repeatable measurement of available charge in rechargeable batteries.
Designed for portable equipment such as power tools with high discharge rates.
Designed for battery pack integration - 120µA typical standby current (self-discharge estimation mode) - Small size enables imple- mentations in as little as 1 2 square inch of PCB.
Direct drive of LEDs for capacity display.
Self-discharge compensation using internal temper.
