BQ4024 Datasheet - Benchmarq

BQ4024 - Nonvolatile SRAM

The CMOS bq4024 is a nonvolatile 2,097,152-bit static RAM organized as 131,072 words by 16 bits.

The integral control circuitry and lithium energy source provide reliable nonvolatility coupled with the unlimited write cycles of standard SRAM.

The control circuitry constantly monitors the single 5V s

BQ4024 Features

* ® Data retention in the absence of power ® Automatic write-protection during power-up/power-down cycles ® Industry-standard 40-pin 128K x 16 pinout ® Conventional SRAM operation; unlimited write cycles ® 10-year minimum data retention in absence of power ® Battery internally isolated until power is

BQ4024_Benchmarq.pdf

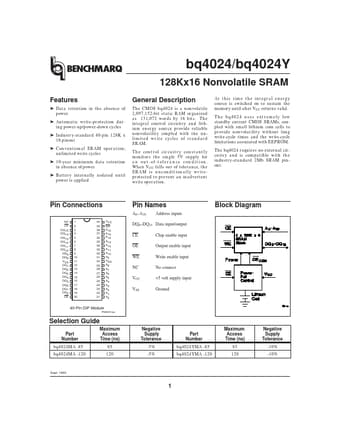

Preview of BQ4024 PDF
BQ4024 Datasheet Preview Page 2 BQ4024 Datasheet Preview Page 3

Datasheet Details

Part number:

BQ4024

Manufacturer:

Benchmarq

File Size:

459.33 KB

Description:

Nonvolatile sram.
