BQ4024Y

Nonvolatile SRAM

BQ4024Y Features

* ® Data retention in the absence of power ® Automatic write-protection during power-up/power-down cycles ® Industry-standard 40-pin 128K x 16 pinout ® Conventional SRAM operation; unlimited write cycles ® 10-year minimum data retention in absence of power ® Battery internally isolated until power is

BQ4024Y General Description

The CMOS bq4024 is a nonvolatile 2,097,152-bit static RAM organized as 131,072 words by 16 bits. The integral control circuitry and lithium energy source provide reliable nonvolatility coupled with the unlimited write cycles of standard SRAM. The control circuitry constantly monitors the single 5V s.

BQ4024Y Datasheet (459.33 KB)

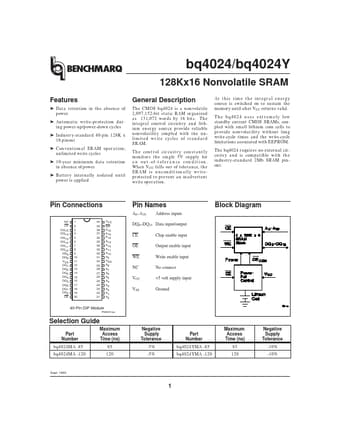

Preview of BQ4024Y PDF

Datasheet Details

Part number:

BQ4024Y

Manufacturer:

Benchmarq

File Size:

459.33 KB

Description:

Nonvolatile sram.
