Q25W - 25-30W DC/DC Converter

Product Overview

📥 Download Datasheet

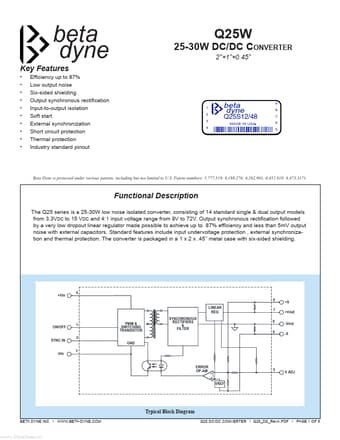

Q25W 25-30W DC/DC Converter by Beta Dyne - Datasheet Preview — Datasheet preview – Q25W

Datasheet Details

Part number	Q25W
Manufacturer	Beta Dyne
File Size	809.45 KB
Description	25-30W DC/DC Converter
Datasheet	Q25W Datasheet
Additional preview pages of the Q25W datasheet.

Product details

Description

The Q25 series is a 25-30W low noise isolated converter, consisting of 14 standard single & dual output models from 3.3VDC to 15 VDC and 4:1 input voltage range from 9V to 72V.

Features

beta dyne 25-30W DC/DC Converter 2”×1”×0.45” Q25W Efficiency up to 87% Low output noise Six-sided shielding Output synchronous rectification Input-to-output isolation Soft start External synchronization Short circuit protection Thermal protection Industry standard pinout 1 2 3 4 beta dyne Q25S12/48 MADE IN USA 9 8 7 6 5 Beta Dyne is protected under various patents, including but.
