50K6MBD1 Datasheet - BetaTHERM

50K6MBD1 Interchangeable mini-BetaCURVE Probe

BetaTHERM Sensors Photo? Interchangeable mini-BetaCURVE Probe Interchangeable mini-BetaCURVE Probe: Applications: Reduced size allows localized temperature sensing. Small Medical probes. Micro-flow sensing. Aerospace temperature sensing. Thermistor Configuration 5.08mm Nominal (0.200") 50.8mm Nominal (2.0") 6.35mm (0.25") 1.01mm Dia. Typ. (0.04") 30 AWG Solid Silver Epoxy Filled Polyimide Tube (0.002" wall thickness) Plated Copper with Black Kynar Insulation S.

50K6MBD1 Features

* Rapid Time Constant (400 milliseconds in liquids).

* Standards supplied with +/-0.2oC tolerance (0 to 70oC).

* Other tolerances available.

* 0.5 mW/oC typ. Dissipation Constant in air at 25oC.

* Smaller than regular BetaCURVE Series The mini-BetaCURVE Probe is an extension of

50K6MBD1 Datasheet (192.98 KB)

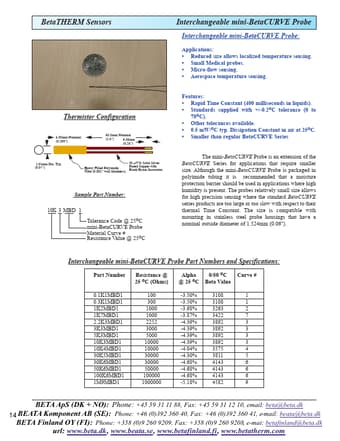

50K6MBD1 Datasheet Preview — Preview of 50K6MBD1 PDF

Datasheet Details

Part number:

50K6MBD1

Manufacturer:

BetaTHERM

File Size:

192.98 KB

Description:

Interchangeable mini-betacurve probe.
