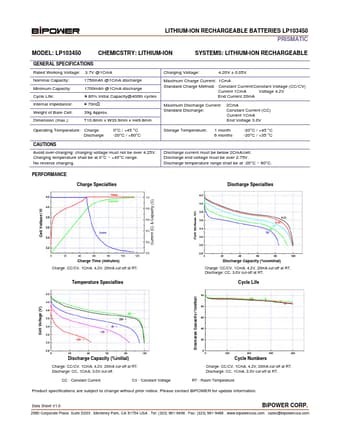

LP103450 Datasheet - BiPOWER

LP103450 LITHIUM-ION RECHARGEABLE BATTERIES

LITHIUM-ION RECHARGEABLE BATTERIES LP103450 PRISMATIC MODEL: LP103450 CHEMICSTRY: LITHIUM-ION SYSTEMS: LITHIUM-ION RECHARGEABLE GENERAL SPECIFICATIONS Rated Working Voltage: 3.7V @1CmA Nominal Capacity: 1750mAh @1CmA discharge Minimum Capacity: 1700mAh @1CmA discharge Cycle Life: ≥ 80% Initial Capacity@400th cycles Internal Impedance: ≤ 70mΩ Weight of Bare Cell: 39g Approx. Dimension (max.): T10.8mm x W33.9mm x H49.8mm Charging Voltage: 4.20V ± 0.05V Maximum Charge Current: 1.

LP103450-BiPOWER.pdf
