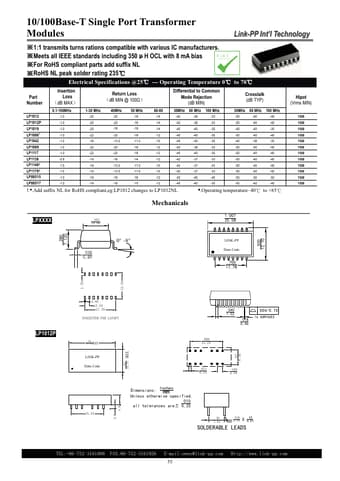

LP1012 10/100Base-T Single Port Transformer

10/100Base-T Single Port Transformer Modules Link-PP Int’l Technology 1:1 transmits turns rations compatible with various IC manufacturers. Meets all IEEE standards including 350 H OCL with 8 mA bias For RoHS compliant parts add suffix NL RoHS NL peak solder rating 235 Electrical Specifications @25 - Operating Temperature 0 to 70 Part Number Insertion Loss #dB MAX$ Return Loss #dB MIN @ 100Ω$ Differential to Common Mode Rejection (dB MIN) Cros.
