LP101WH1-TLB4 Datasheet - LG

LP101WH1-TLB4 Liquid Crystal Display

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTION LVDS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING SPECIFICATIONS www.DataSheet.net/ ITEM Page 1 2 3 4 5 6 7 8 10 10 11 12 13 16 20 SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE OP.

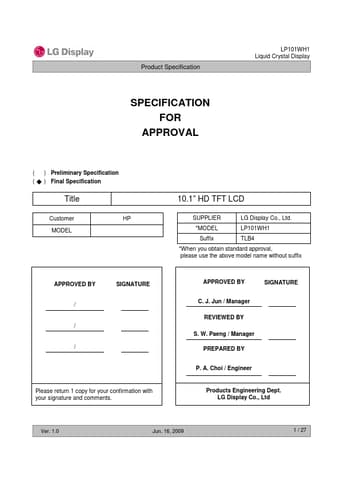

LP101WH1 Liquid Crystal Display Product Specification SPECIFICATION FOR APPROVAL ( ) Preliminary Specification ( ) Final Specification Title Customer MODEL HP 10.1” HD TFT LCD SUPPLIER MODEL Suffix www.DataSheet.net/ LG Display Co., Ltd. LP101WH1 TLB4 When you obtain standard approval, please use the above model name without suffix APPROVED BY SIGNATURE APPROVED BY C. J. Jun / Manager REVIEWED BY SIGNATURE / / S. W. Paeng / Manager / PREPARED BY P. A. Choi / Engin.

LP101WH1-TLB4 Features

* Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment RoHS Comply Ver. 1.0 10.1 inches diagonal 235(H) × 143(V) × .5.2(D,Max.) [mm] 0.16305mm × 0.16305 mm 1366 horiz. By 768 vert. Pixels RGB strip
