2SC3279 - NPN Silicon Epitaxial Planar Transistor

2SC3279 Description

2SC3279 NPN Silicon Epitaxial Planar Transistor for storobo flash and medium power amplifier applications.The transistor is subdivided into four gr.

2SC3279 Applications

* The transistor is subdivided into four groups L, M, N and P, according to its DC current gain. On special request, these transistors can be manufactured in different pin configurations. 1. Emitter 2. Collector 3. Base TO-92 Plastic Package Weight approx. 0.19g Absolute Maximum Ratings (Ta=25oC) P

📥 Download Datasheet

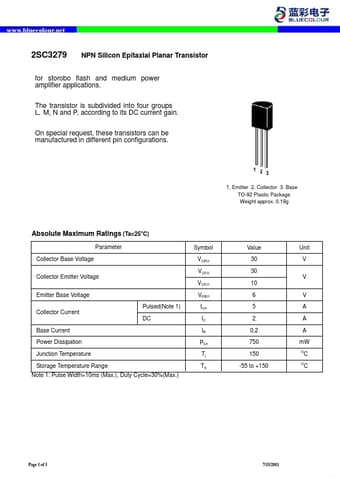

Preview of 2SC3279 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC3279
Manufacturer
Bluecolour
File Size
99.53 KB
Datasheet
2SC3279-Bluecolour.pdf
Description
NPN Silicon Epitaxial Planar Transistor
