BL2002A1 Datasheet - Bolymin

BL2002A1 DISPLAY

1 N.C - Reserved Pin 2 VSL P Voltage output Low Level for SEG Signal 3 VSS P Ground 4 REGVDD I 5V I/O Regulator ConﬁguraƟon 5 SHLC I Scanning DirecƟon for COM Signal 6 SHLS I Mapping DirecƟon for SEG Signal 7 VDD P Power Supply for logic Circuit 8 VDDIO P Power Supply for Int.

BL2002A1 1. COG package 2. 5V power supply 3. 5x8 dots format display 4. Built-in controller : US2066 5. Color: white, yellow, green 6. Support MCU Interfaces: ○ 4 / 8-bit 6800/8080-series parallel interface ○ Serial Peripheral Interface ○ I²C Interface (Up to 400kbit/s) 7. 256-step contrast control 8. 3 sets of CGROM (ROM A / B / C hardware/software selectable) 9. Operating temperatures: -40°C to 85°C 130 x 37 73.52 x 11.52 0.62 x 0.67 3.22 x 5.57 Item Input Voltage Supply Current .

BL2002A1 Datasheet (224.67 KB)

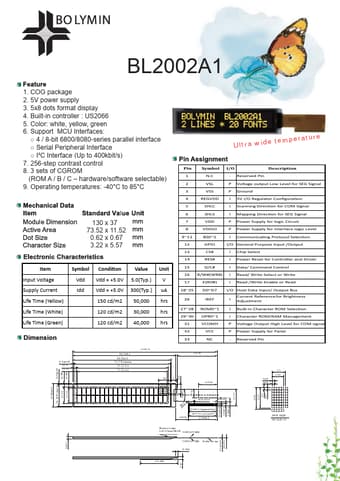

BL2002A1 Datasheet Preview — Preview of BL2002A1 PDF

Datasheet Details

Part number:

BL2002A1

Manufacturer:

Bolymin

File Size:

224.67 KB

Description:

Display.
