BL2004A1 Datasheet - Bolymin

BL2004A1 DISPLAY

1 N.C - Reserved Pin 2 VSL P Voltage output Low Level for SEG Signal 3 VSS P Ground 4 REGVDD I 5V I/O Regulator ConﬁguraƟon 5 SHLC I Scanning DirecƟon for COM Signal 6 SHLS I Mapping DirecƟon for SEG Signal 7 VDD P Power Supply for logic Circuit 8 VDDIO P Power Supply for Int.

BL2004A1 0 .5±0.05 (2.34) (3.34) 1. COG package 2. 5V power supply 3. 5x8 dots format display 4. Built-in controller : US2066 5. Color: white, yellow, green 6. Support MCU Interfaces: ○ 4 / 8-bit 6800/8080-series parallel interface ○ Serial Peripheral Interface ○ I²C Interface (Up to 400kbit/s) 7. 256-step contrast control 8. 3 sets of CGROM (ROM A / B / C hardware/software selectable) 9. Operating temperatures: -40°C to 85°C 84.5 x 27.5 70.42 x 20.82 0.57 x 0.57 2.97 x 4.77 Item I.

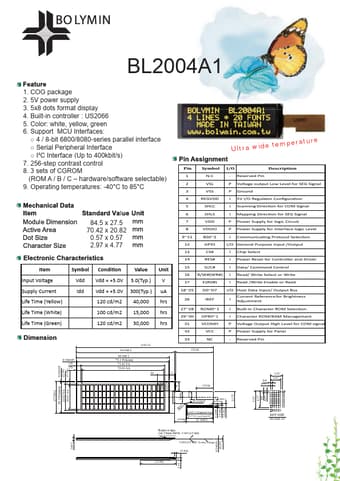

BL2004A1 Datasheet (228.74 KB)
