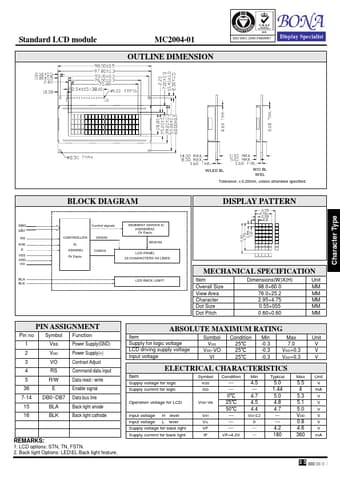

Standard LCD module MC2004-01 OUTLINE DIMENSION ISO 9001:2000 FM86067 Character Type BLOCK DIAGRAM W/LED BL W/O BL W/EL Tolerance: ± 0.20mm, unless otherwise specified. DISPLAY PATTERN DBO ~ DB7 Control signals SEGMENT DRIVER IC KS0063BX2 Or Equiv. RS CONTROLLER SEG40 R/W IC SEG160 E VSS VDD VO KS0066U Or Equiv. COM16 LCD PANEL 20 CHARACTERS X4 LINES MECHANICAL SPECIFICATION BLA LED BACK LIGHT Item Dimensions(W)X(H) Unit BLK Overall Size 98.0×60.0 MM View Area 76.0×2.
