BM0550HV - Universal High Brightness LED Driver

Datasheet Summary

Description

The BM0550HV is a high efficiency LED driver.

600V.

Features

>90% efficiency 10V to 600V DC input range Constant current LED driver Linear and PWM dimming capability Internal thermal overload protection PIN.

Bookly

📥 Download Datasheet

Datasheet Details

Part number	BM0550HV
Manufacturer	Bookly
File Size	207.39 KB
Description	Universal High Brightness LED Driver
Datasheet	BM0550HV Datasheet
Additional preview pages of the BM0550HV datasheet.

📁 Similar Datasheet

BM05B-SRSS-TB - Disconnectable Insulation displacement connectors (SR)
BM05B-ZESS - 1.5mm pitch/Disconnectable Crimp style connectors (JST)
BM05N06 - NPN TRANSISTOR (JILIN SINO)
BM05P06A - PNP TRANSISTOR (JILIN SINO)
BM05P06B - PNP TRANSISTOR (JILIN SINO)
BM00801 - INTEGRATED CONNECTOR MODULES (BEL)
BM01810 - INTEGRATED CONNECTOR MODULES (BEL)
BM02B-SRSS-TB - Disconnectable Insulation displacement connectors (SR)
BM02B-ZESS - 1.5mm pitch/Disconnectable Crimp style connectors (JST)
BM03B-SRSS-TB - Disconnectable Insulation displacement connectors (SR)

Other Datasheets by Bookly

BM0102 - 2.5W AUDIO CLASS-D+
BM0120 - 20W AUDIO CLASS D+
BM0123A - Inherently Matched LED Current driver chip
BM0150 - 1.5A POWER LED DRIVER
BM0150HV - 60V Buck Converter
BM0152HV - buck LED driver
BM0210 - 10W x 2 CLASS D+ AUDIO
BM0246A - White LED Step-Up Converter

Full PDF Text Transcription

Click to expand full text

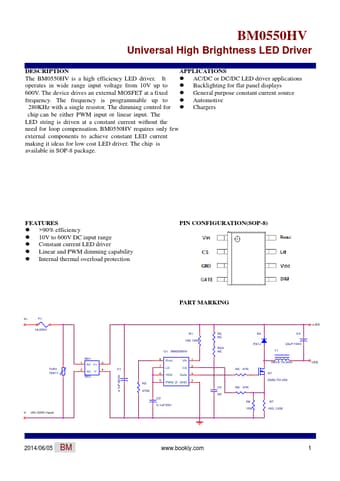

BM0550HV Universal High Brightness LED Driver DESCRIPTION APPLICATIONS The BM0550HV is a high efficiency LED driver. It AC/DC or DC/DC LED driver applications operates in wide range input voltage from 10V up to Backlighting for flat panel displays 600V. The device drives an external MOSFET at a fixed General purpose constant current source frequency. The frequency is programmable up to Automotive 3280KHz with a single resistor. The dimming control for Chargers chip can be either PWM input or linear input. The LED string is driven at a constant current without the need for loop compensation. BM0550HV requires only few external components to achieve constant LED current making it ideas for low cost LED driver. The chip is available in SOP-8 package.
