BM7000

Low Power Amplifier

BM7000 Features

* Low quiescent current

* High power supply ripple rejection

* Low voltage operation

* A few of external part required

* Built in power save switch & mute switch Typical Applications

* Portable compact disk player (DISCMAN)

* Portable mini disk

BM7000 General Description

The BM7000 is a monolithic integrated circuit and suitable dual amplifier for low power. 10-SSOP 1 BM7000 Pin Assignments MUTE OUTA 10 9 GND 8 OUTB 7 VCC 6 7000 12345 PS INA GND INB REF Pin Definitions Pin Number 1 2 3 4 5 6 7 8 9 10 Pin Name PS INA GND INB REF VCC OUTB GND OUTA MUTE Pin F.

BM7000 Datasheet (69.73 KB)

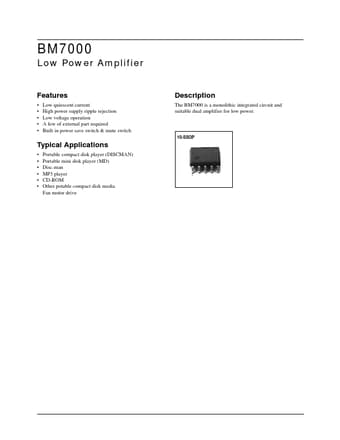

Preview of BM7000 PDF

Datasheet Details

Part number:

BM7000

Manufacturer:

Bookly

File Size:

69.73 KB

Description:

Low power amplifier.
