BM7550

100mA Low Power LDO

BM7550 Features

* Low power consumption

* Low voltage drop

* Low temperature coefficient

* High input voltage (up to +18) Applications

* Battery-powered equipment

* Communication equipment

* High output current : 100mA (Pd £ 250mW)

* Output voltage accuracy: tolerance ±3%

* TO-9

BM7550 General Description

The 75XX series is a set of three-terminal high current low voltage regulator implemented in CMOS technology. They can deliver 100mA output current and allow an input voltage as high as 18V. They are available with several fixed output voltages ranging from 3.0V to 5.0V. CMOS technology ensures low.

BM7550 Datasheet (197.65 KB)

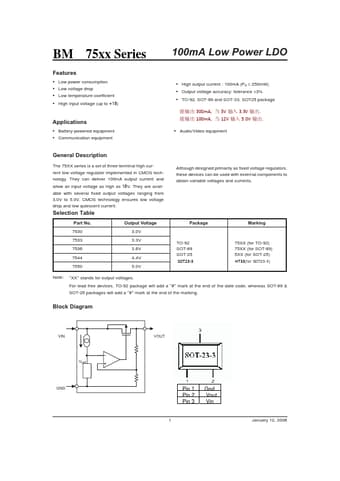

Preview of BM7550 PDF

Datasheet Details

Part number:

BM7550

Manufacturer:

Bookly

File Size:

197.65 KB

Description:

100ma low power ldo.
