GS5008MHF - 1000 BASE-T MAGNETICS MODULES

This page provides the datasheet information for the GS5008MHF, a member of the GS5007HF 1000 BASE-T MAGNETICS MODULES family.

📥 Download Datasheet

Datasheet preview – GS5008MHF

Datasheet Details

Part number GS5008MHF
Manufacturer Bothhand USA
File Size 852.27 KB
Description 1000 BASE-T MAGNETICS MODULES
Datasheet download datasheet GS5008MHF Datasheet
Additional preview pages of the GS5008MHF datasheet.

📁 Similar Datasheet

  • GS5012 - 1000 BASE -T DUAL PORT MAGNETICS MODULES (Bothhand)
  • GS5159 - 24V 1.5A 1.4MHz Asynchronous Step-Down DC-DC Converter (Globaltech)
  • GS5256 - 150KHz 3A Step-Down Voltage Regulator (Globaltech)
  • GS5333Y - High Input Voltage / Low Quiescent Current / Fixed 3.3V Low Dropout Voltage Linear Regulator (Globaltech)
  • GS5350 - High Efficient Boost LED Driver Controller (Global Semiconductor)
  • GS5413 - Step-Down Converter (Globaltech)
  • GS5420 - 16V Input Synchronous Step-Down Converter (Globaltech)
  • GS5453 - 700KHZ Synchronous Step-Down DC/DC Converter (Globaltech)
  • GS5453A - Step-Down Converter (Globaltech)
  • GS5470 - Step-Down Converter (Globaltech)
Other Datasheets by Bothhand USA
  • GS5008 - 1000-BASE-T MAGNETICS
  • GS5008HF - 1000 BASE-T MAGNETICS MODULES
  • GS5007HF - 1000 BASE-T MAGNETICS MODULES
  • GS5009 - 1000-BASE-T MAGNETICS
  • GS5009HF - 1000 BASE-T MAGNETICS MODULES
  • GS5010 - 1000-BASE-T MAGNETICS
  • GS5012LF - 1000 BASE-T MAGNETICS MODULES
  • GS5012M1LF - 1000 BASE-T MAGNETICS MODULES

Full PDF Text Transcription

Click to expand full text

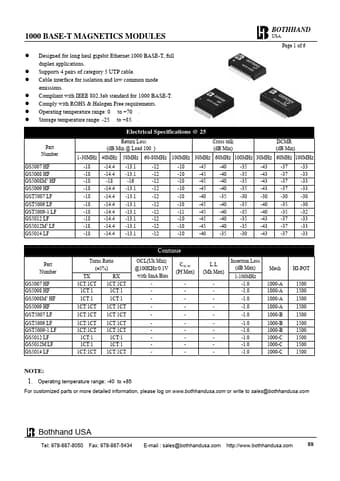

1000 BASE-T MAGNETICS MODULES z Designed for long haul gigabit Ethernet 1000 BASE-T, full duplex applications. z Supports 4 pairs of category 5 UTP cable. z Cable interface for isolation and low common mode emissions. z Compliant with IEEE 802.3ab standard for 1000 BASE-T. z Comply with ROHS & Halogen Free requirements. z Operating temperature range: 0 to +70 . z Storage temperature range: -25 to +85 . BOTHHAND USA Page 1 of 6 Part Number GS5007 HF GS5008 HF GS5008M1 HF GS5009 HF GST5007 LF GST5009 LF GST5009-1 LF GS5012 LF GS5012M1 LF GS5014 LF Electrical Specifications @ 25 Return Loss (dB Min @ Load 100 ) Cross talk (dB Min) DCMR (dB Min) 1-30MHz 40MHz 50MHz 60-80MHz 100MHz 30MHz 60MHz 100MHz 30MHz 60MHz 100MHz -18 -14.4 -13.1 -18 -14.4 -13.1 -18 -18 -16 -18 -14.4 -13.1 -18 -14.
