GS5333Y - High Input Voltage / Low Quiescent Current / Fixed 3.3V Low Dropout Voltage Linear Regulator

GS5333Y Description

GS5333Y High Input Voltage / Low Quiescent Current / Fixed 3.3V Low Dropout Voltage Linear Regulator Product .
The GS5333 is a High Input Voltage and Low Quiescent Current linear regulator with Fixed 3.

GS5333Y Features

* Input Voltage Range: 4.3V to 35V
* Output Current: 200mA
* Low Dropout Voltage: 600mV at 200mA 300mV at 100mA 30mV at 10mA
* Output Voltage Accuracy: ±2.0%
* Low Supply Current: 1μA (Typ)
* Over Current Protection
* Fixed Output Voltage: 3.3V
* Miniature Packages: S

GS5333Y Applications

* Standby Power Source
* Networking
* Home Appliance
* MCU Application Block Diagram www. gs-power. co m Packages & Pin Assignments TAB 123 Pin No. 1 2 3 TAB Pin Name GND VIN VOUT VIN SOT89-3 Function Ground Pin. Power Supply I

📥 Download Datasheet

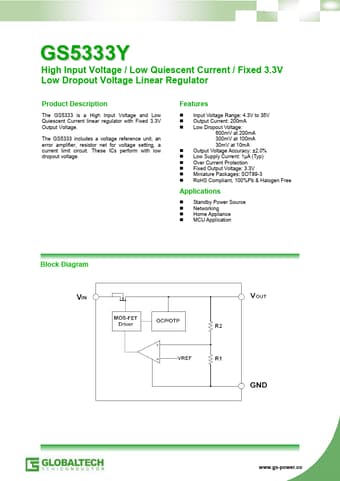

Preview of GS5333Y PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GS5333Y
Manufacturer
Globaltech
File Size
549.19 KB
Datasheet
GS5333Y-Globaltech.pdf
Description
High Input Voltage / Low Quiescent Current / Fixed 3.3V Low Dropout Voltage Linear Regulator
