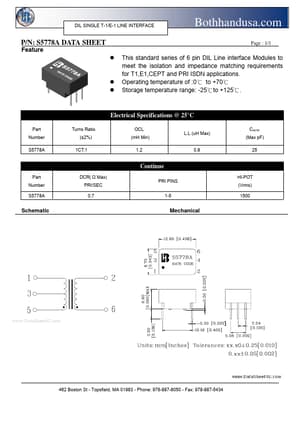

datasheet Preview Page 1 from Datasheet4u.com

S5778A DIL SINGLE T-1/E-1 LINE INTERFACE

DIL SINGLE T-1/E-1 LINE INTERFACE Bothhandusa.com Page : 1/1 P/N: S5778A DATA SHEET .

S5778A_Bothhandusa.pdf

S5778A Datasheet Preview — Preview of S5778A PDF

Datasheet Details

Part number:

S5778A

Manufacturer:

Bothhandusa

File Size:

288.22 KB

Description:

DIL SINGLE T-1/E-1 LINE INTERFACE

Applications

* Operating temperature of :0℃ to +70℃ Storage temperature range: -25℃to +125℃. Electrical Specifications @ 25°C Part Number S5778A Turns Ratio (±2%) 1CT:1 OCL (mH Min) 1.2 L. L (uH Max) CW/W (Max pF) 25 0.8 Continue Part Number S5778A DCR( Ω Max) PRI/SEC 0.7 PRI PINS 1-5 HI-POT (Vrms) 1500 Schema
