Isdn s-interface isolation transformer.

S5798B, ISDN S-INTERFACE ISOLATION TRANSFORMER

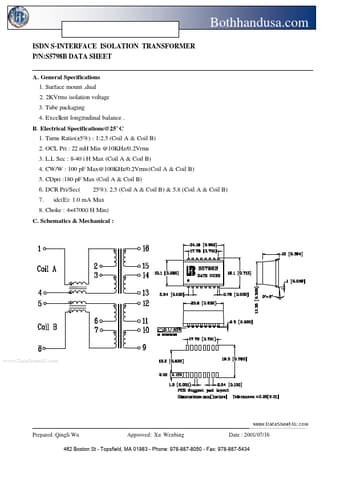

Bothhandusa.com ISDN S-INTERFACE ISOLATION TRANSFORMER P/N:S5798B DATA SHEET A.

General Specifications 1.

Surface mount ,dual 2.

2KVrms isolation voltage 3.

Tube packaging 4.

Excellent longitudinal balance .

B.

Electrical Specifications@25°C 1.

Turns Ratio(±5%) : 1:2.5 (Coil A & Coil B) 2.

OCL Pri : 22 mH Min @10KHz/0.2Vrms 3.

L.L Sec : 8-40 ìH Max (Coil A & Coil B) 4.

CW/W : 100 pF Max@100KHz/0.2Vrms(Coil A & Coil B) 5.

CDpri :180 pF Max (Coil A & Coil B) 6.

DCR Pri/Sec(£[¡Ó 25%): 2.5 (Coil A &
