SRR1206

Shielded High Power Inductors

SRR1206 Features

* Available in E12 series

* Unit height of 6.5 mm

* Current rating up to 6 A

* RoHS compliant

* Applications

* Input/output of DC/DC converters

* Power supplies for:

* Portable communication equipment

* Camcorders

* LCD TVs SRR1206 Series - Shield

SRR1206 Datasheet (453.68 KB)

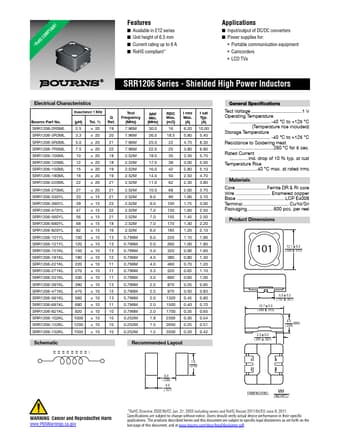

Preview of SRR1206 PDF

Datasheet Details

Part number:

SRR1206

Manufacturer:

Bourns Electronic Solutions

File Size:

453.68 KB

Description:

Shielded high power inductors.
