CV201210 - Ferrite Multi-Layer Chip Inductors

Features

n 0805 size n Magnetic shielding n Height as low as 0.85 mm n Nickel barrier n RoHS compliant.

Bourns Electronic

Datasheet Details

Part number	CV201210
Manufacturer	Bourns Electronic
File Size	661.93 KB
Description	Ferrite Multi-Layer Chip Inductors
Datasheet	CV201210 Datasheet
Additional preview pages of the CV201210 datasheet.

📁 Similar Datasheet

CV2030 - Surface Mountl Led Lamp (Super Bright Industrial)
CV203CZ - 10W Audio Power Amp (Winning)
CV203CZ - 10W car radio audio power amplifier (Huajing Microelectronics)
CV2-xxx - Current Transformers & Sensors (Premo)
CV210-1 - Cellular-band Dual-Branch Downconverter (WJ Communication)
CV210-1A - Cellular-band Dual-Branch Downconverter (WJ Communication)
CV210-2A - Cellular-band Dual-Branch Downconverter (WJ Communication)
CV210-3A - Cellular-band Dual-Branch Downconverter (WJ Communication)
CV2103 - Valve (ETC)
CV211-1A - PCS/DCS-band Dual-Branch Downconverter (WJ Communication)

Other Datasheets by Bourns Electronic

Full PDF Text Transcription

Click to expand full text

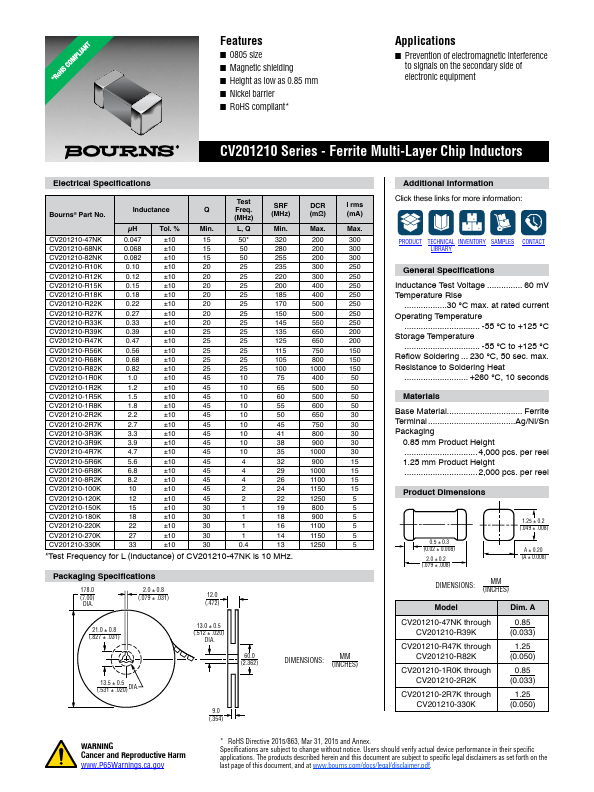

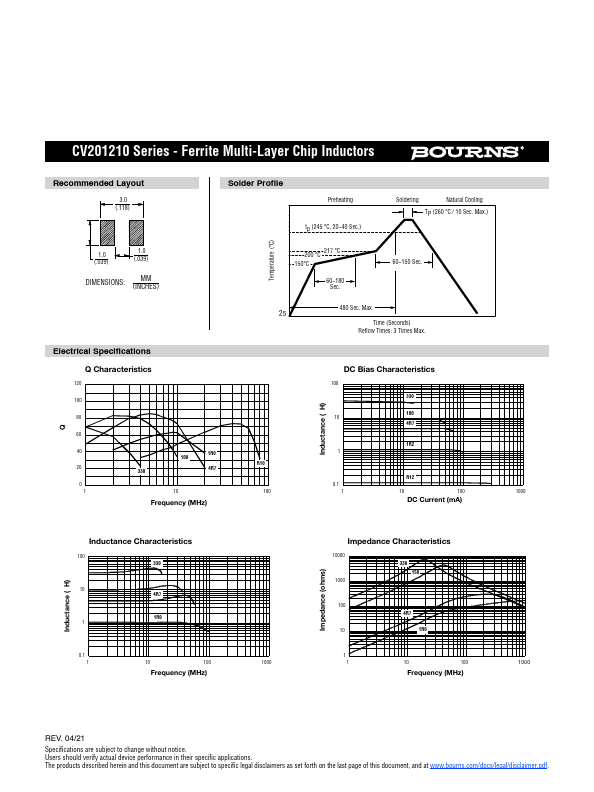

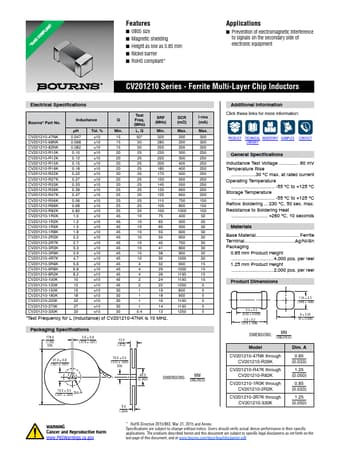

Features n 0805 size n Magnetic shielding n Height as low as 0.85 mm n Nickel barrier n RoHS compliant* Applications n Prevention of electromagnetic interference to signals on the secondary side of electronic equipment CV201210 Series - Ferrite Multi-Layer Chip Inductors Electrical Specifications Bourns® Part No. Inductance Q Test Freq. (MHz) SRF (MHz) µH Tol. % Min. L, Q Min. CV201210-47NK 0.047 ±10 15 50* 320 CV201210-68NK 0.068 ±10 15 50 280 CV201210-82NK 0.082 ±10 15 50 255 CV201210-R10K 0.10 ±10 20 25 235 CV201210-R12K 0.12 ±10 20 25 220 CV201210-R15K 0.15 ±10 20 25 200 CV201210-R18K 0.18 ±10 20 25 185 CV201210-R22K 0.22 ±10 20 25 170 CV201210-R27K 0.27 ±10 20 25 150 CV201210-R33K 0.
