CV210-1 - Cellular-band Dual-Branch Downconverter

Description

The CV210-1 is a dual-channel high-linearity downconverter designed to meet the performance, functionality, and cost goals of current and next generation mobile infrastructure basestations.

It is ideally suited for high dynamic range receiver front ends using diversity receive channels.

Features

High dynamic range downconverter with integrated LO driver and IF amplifiers.
Dual channels for diversity.
+27 dBm Input IP3.
+12 dBm Input P1dB.
11.5 dB Noise Figure.
RF: 806 - 915 MHz.
IF: 70 - 120 MHz.
Low-side LO downconverter.
Single supply operation (+5 V).
6 x 6 mm QFN SMT package CV Product.

Datasheet Details

Part number	CV210-1
Manufacturer	WJ Communication
File Size	256.09 KB
Description	Cellular-band Dual-Branch Downconverter
Datasheet	CV210-1 Datasheet
Additional preview pages of the CV210-1 datasheet.

📁 Similar Datasheet

CV2103 - Valve (ETC)

CV2-xxx - Current Transformers & Sensors (Premo)

CV201210 - Ferrite Multi-Layer Chip Inductors (Bourns Electronic)

CV2030 - Surface Mountl Led Lamp (Super Bright Industrial)

CV203CZ - 10W Audio Power Amp (Winning)

CV203CZ - 10W car radio audio power amplifier (Huajing Microelectronics)

CV2201 - Web tension measuring amplifier (Erhardt Leimer)

CV2201 - highly-programmable Image Cognition Processors (CogniVue)

CV2201 - Valve (ETC)

CV2202 - highly-programmable Image Cognition Processors (CogniVue)

Full PDF Text Transcription

Click to expand full text

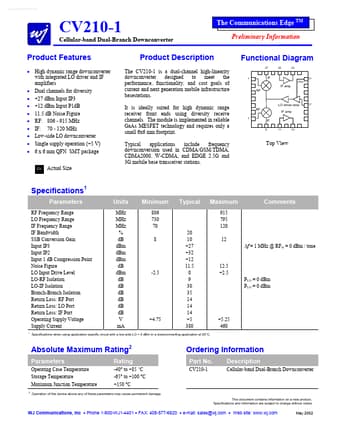

www.DataSheet4U.com CV210-1 Cellular-band Dual-Branch Downconverter The Communications Edge TM Preliminary Information Product Features • High dynamic range downconverter with integrated LO driver and IF amplifiers • Dual channels for diversity • +27 dBm Input IP3 • +12 dBm Input P1dB • 11.5 dB Noise Figure • RF: 806 - 915 MHz • IF: 70 - 120 MHz • Low-side LO downconverter • Single supply operation (+5 V) • 6 x 6 mm QFN SMT package CV Product Description The CV210-1 is a dual-channel high-linearity downconverter designed to meet the performance, functionality, and cost goals of current and next generation mobile infrastructure basestations. It is ideally suited for high dynamic range receiver front ends using diversity receive channels.
