3223G, 3223J Trimming Potentiometer

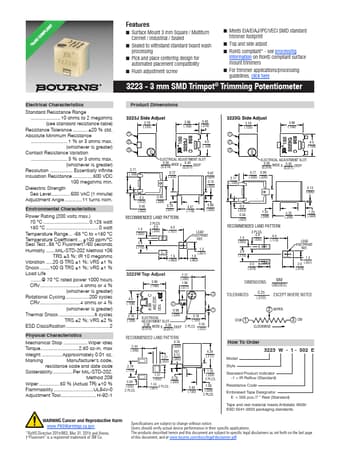

📥 Download Datasheet  Datasheet Preview Page 1

Description

100 3223W 839C .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 3223G, 3223J. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
3223G, 3223J
Manufacturer
Bourns
File Size
722.76 KB
Datasheet
3223J-Bourns.pdf
Description
Trimming Potentiometer
Note
This datasheet PDF includes multiple part numbers: 3223G, 3223J.
Please refer to the document for exact specifications by model.

Features

* n Surface Mount 3 mm Square / Multiturn Cermet / Industrial / Sealed n Sealed to withstand standard board wash processing n Pick and place centering design for automated placement compatibility n Flush adjustment screw n Meets EIA/EIAJ/IPC/VECI SMD standard trimmer footprint n Top and side adjust

Applications

* processing guidelines, click here 3223 - 3 mm SMD Trimpot® Trimming Potentiometer Electrical Characteristics Product Dimensions Standard Resistance Range 10 ohms to 2 megohms 3223J3S2i2d3eJASdijduestAdjust (see standard resistance table) Resistance Tolerance ±20 % std. 3.18 3.18 (.125) (
