3223W, 3223J Datasheet - Bourns

3223W, 3223J, Trimming Potentiometer

100 3223W 839C .

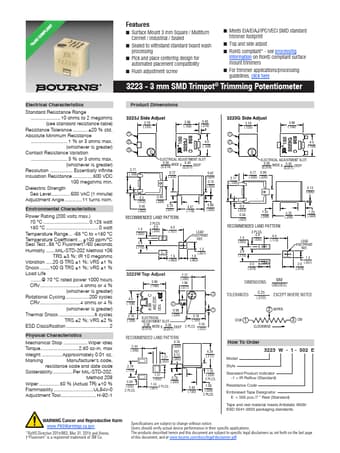

 datasheet Preview Page 1 from Datasheet4u.com

3223J-Bourns.pdf

This datasheet PDF includes multiple part numbers: 3223W, 3223J. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

3223W, 3223J

Manufacturer:

Bourns

File Size:

722.76 KB

Description:

Trimming Potentiometer

Note:

This datasheet PDF includes multiple part numbers: 3223W, 3223J.
Please refer to the document for exact specifications by model.

Features

* n Surface Mount 3 mm Square / Multiturn Cermet / Industrial / Sealed n Sealed to withstand standard board wash processing n Pick and place centering design for automated placement compatibility n Flush adjustment screw n Meets EIA/EIAJ/IPC/VECI SMD standard trimmer footprint n Top and side adjust

Applications

* processing guidelines, click here 3223 - 3 mm SMD Trimpot® Trimming Potentiometer Electrical Characteristics Product Dimensions Standard Resistance Range 10 ohms to 2 megohms 3223J3S2i2d3eJASdijduestAdjust (see standard resistance table) Resistance Tolerance ±20 % std. 3.18 3.18 (.125) (
