7914, 4 mm SMD & Through-hole Sealed Key Switch

PL IA N .

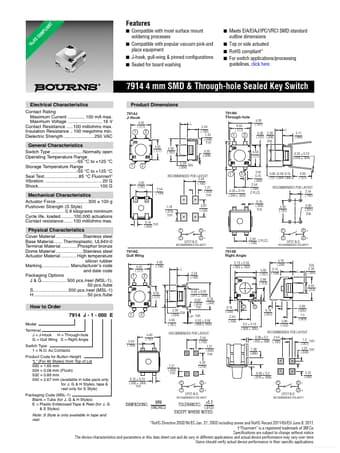

datasheet Preview Page 1 from Datasheet4u.com

7914-Bourns.pdf

7914 Datasheet Preview — Preview of 7914 PDF

Datasheet Details

Part number:

7914

Manufacturer:

Bourns

File Size:

582.52 KB

Description:

4 mm SMD & Through-hole Sealed Key Switch

Features

* Compatible with most surface mount
* Meets EIA/EIAJ/IPC/VRCI SMD standard M T soldering processes
* Compatible with popular vacuum pick-and place equipment
* J-hook, gull-wing & pinned conﬁgurations
* Sealed for board washing outline dimensions
* Top or side actuated

Applications

* processing guidelines, click here
* R oH S CO 7914 4 mm SMD & Through-hole Sealed Key Switch Electrical Characteristics Contact Rating Maximum Current 100 mA max. Maximum Voltage 16 V Contact Resistance 100 milliohms max. Insulation Resistance . . 100 megohms min. Dielectric Strength 250 VAC
