PT61022XEL 10/100/1000 Base-T Transformer

PT61022XEL Description

*RoHS COMPLIANT .

PT61022XEL Features

* Compliant with IEEE 802.3 standards
* Designed for 10/100/1000 Base-T full duplex
* Supports four pairs of Category 5 UTP cables
* Extended operating temperature range
* RoHS compliant

PT61022XEL Applications

* Ethernet PT61022XEL 10/100/1000 Base-T Transformer Electrical Specifications @ 25 °C Turns Ratio (±5 %) 1CT
* :1CT
* Inductance350 µH min. @ 100 KHz, 0.1 Vrms, 8 mA DC Bias Leakage Inductance 0.5 µH max. @ 100 KHz, 0.1 Vrms Cww 25 pF typ. @ 100 KHz, 0.1 Vrms DCR 0.9 Ω max. Insertion Loss

📥 Download Datasheet

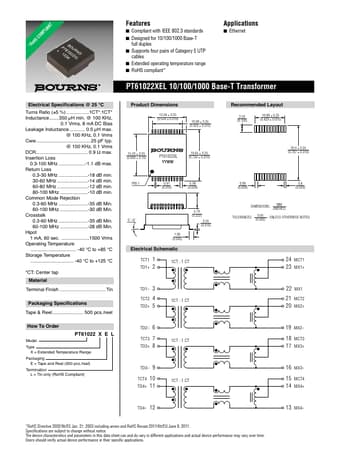

Preview of PT61022XEL PDF
