PT61017PEL LAN 10/100 Base-Tx

PT61017PEL Description

*RoHS COMPLIANT .

PT61017PEL Features

* IEEE 802.3 Ethernet compatible
* Designed for AMD IC manufacturers

PT61017PEL Applications

* RoHS compliant
* Applications
* LAN (Local Area Network)
* Ethernet PT61017PEL LAN 10/100 Base-Tx Turns Ratio ± 5%1CT
* :1CT
* Inductance Pin 1-3, 6-8 . .350 μH min. @ 100 KHz, 0.2 Vrms, 8 mA DC Bias DCR Pin 1-3, 6-8 0.6 Ω max. Pin 9-11, 14-16 1.1 Ω max. Insertion Loss 0.3-1

📥 Download Datasheet

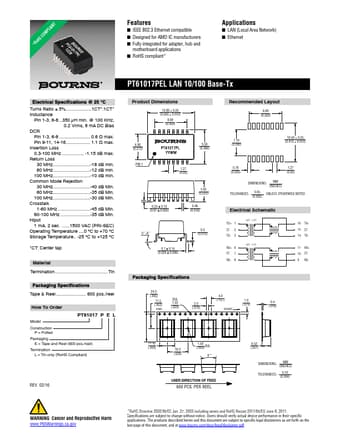

Preview of PT61017PEL PDF
datasheet Preview Page 2

Datasheet Details

Part number
PT61017PEL
Manufacturer
BOURNS
File Size
191.83 KB
Datasheet
PT61017PEL-BOURNS.pdf
Description
LAN 10/100 Base-Tx
