PT61018PEL LAN 10/100 Base-Tx

PT61018PEL Description

*RoHS COMPLIANT .

PT61018PEL Features

* IEEE 802.3 Ethernet compatible
* Dual channel 16-pin SMD
* Wide operating temperature range: -40 to +85 °C
* RoHS compliant

PT61018PEL Applications

* Ethernet PT61018PEL - LAN 10/100 Base-Tx Electrical Specifications @ 25 °C Inductance - OCL 350 μH min. @ 100 KHz, 0.1 Vrms, 8 mA DC Bias Turns Ratio (± 5%) 1CT
* :1CT
* DCR 1.2 Ω max. Insertion Loss 1-100 MHz -1.15 dB max. Return Loss 1-30 MHz -18 dB min. 30-60 MHz -13 dB min. 60-80 MH

📥 Download Datasheet

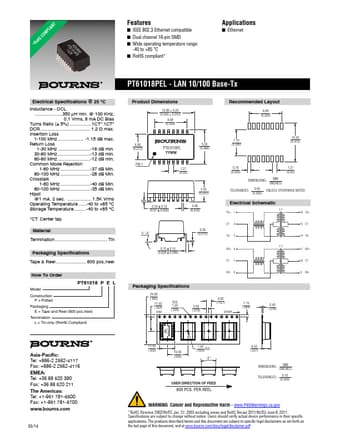

Preview of PT61018PEL PDF
datasheet Preview Page 2

Datasheet Details

Part number
PT61018PEL
Manufacturer
BOURNS
File Size
227.79 KB
Datasheet
PT61018PEL-BOURNS.pdf
Description
LAN 10/100 Base-Tx
