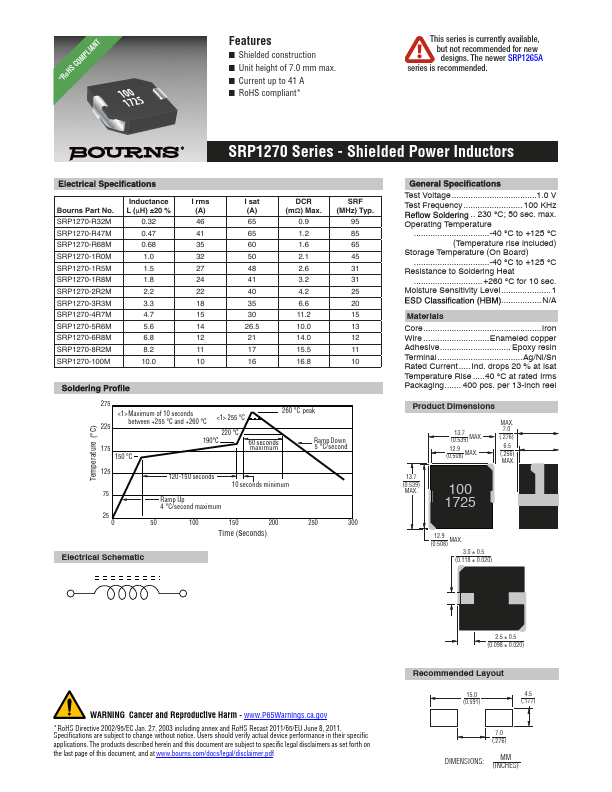

SRP1270, Shielded Power Inductors

*RoHS COMPLIANT 1010725 .

datasheet Preview Page 1 from Datasheet4u.com

SRP1270-Bourns.pdf

SRP1270 Datasheet Preview — Preview of SRP1270 PDF

Datasheet Details

Part number:

SRP1270

Manufacturer:

Bourns

File Size:

241.05 KB

Description:

Shielded Power Inductors

Features

* Shielded construction
* Unit height of 7.0 mm max.
* Current up to 41 A
* RoHS compliant
* This series is currently available, but not recommended for new designs. The newer SRP1265A series is recommended. SRP1270 Series - Shielded Power Inductors Bourns Part No. SRP1270-R32M

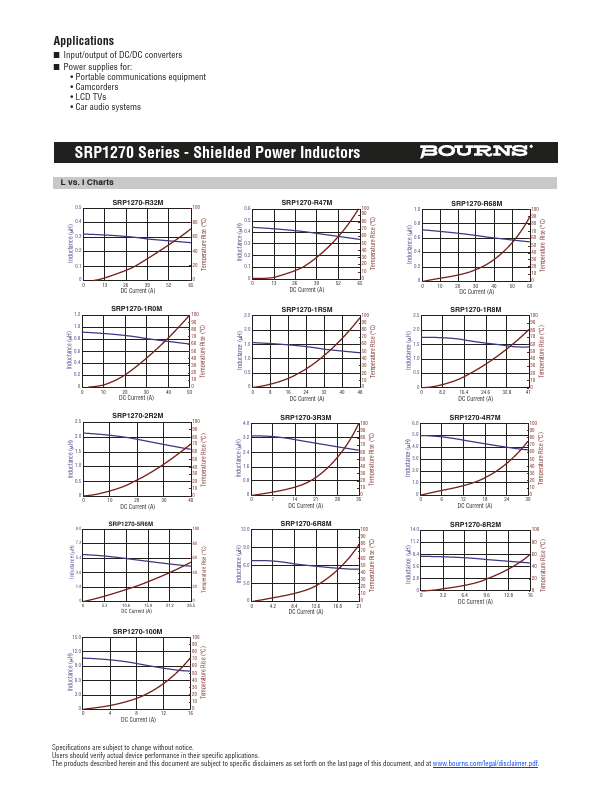

Applications

* The products described herein and this document are subject to speciﬁc legal disclaimers as set forth on the last page of this document, and at www. bourns. com/docs/legal/disclaimer. pdf 2.5 ± 0.5 (0.098 ± 0.020) Recommended Layout 15.0 (0.591) 4.5 (.177) 7.0 (.276) DIMENSIONS: MM (INCHES) App
