SRP4012TA Shielded Power Inductors

SRP4012TA Description

*RoHS * *CHOAML&POLGIAENNTFREE AUTOMOTIVE GRADE 4R7 .

SRP4012TA Features

* Shielded construction
* Carbonyl powder core
* High saturation current
* Low profile - 1.0 mm
* Inductance range: 0.10 to 10 µH
* AEC-Q200 qualified
* RoHS compliant
* and halogen free
* SRP4012TA Series - Shielded Power Inductors Electrical Specifications

SRP4012TA Applications

* The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www. bourns. com/docs/legal/disclaimer. pdf. 4.06 ± 0.25 (.042 ± .010) 0.76 ± 0.3 (.030 ± .012) 2R2 1.0 ± 0.2 (.039 + .008) 2.0 ± 0.2 (.079 ± .008) DIMEN

📥 Download Datasheet

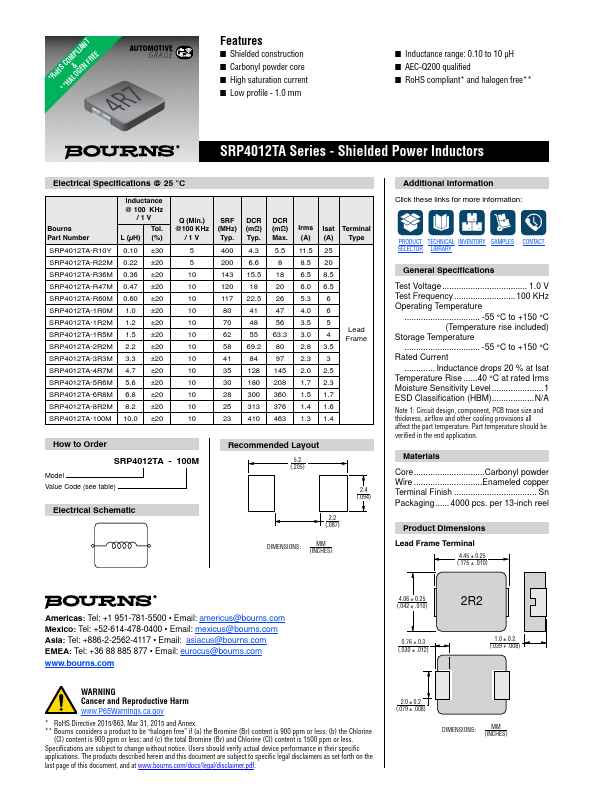

Preview of SRP4012TA PDF

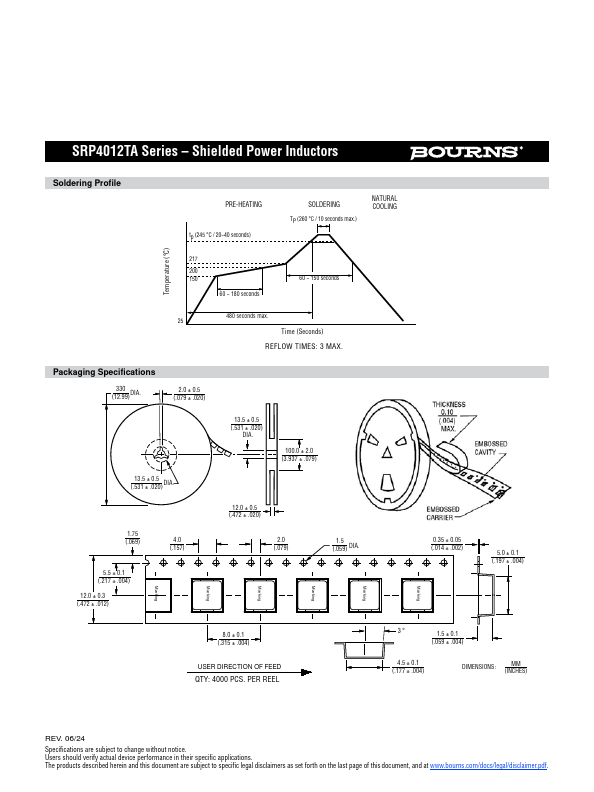

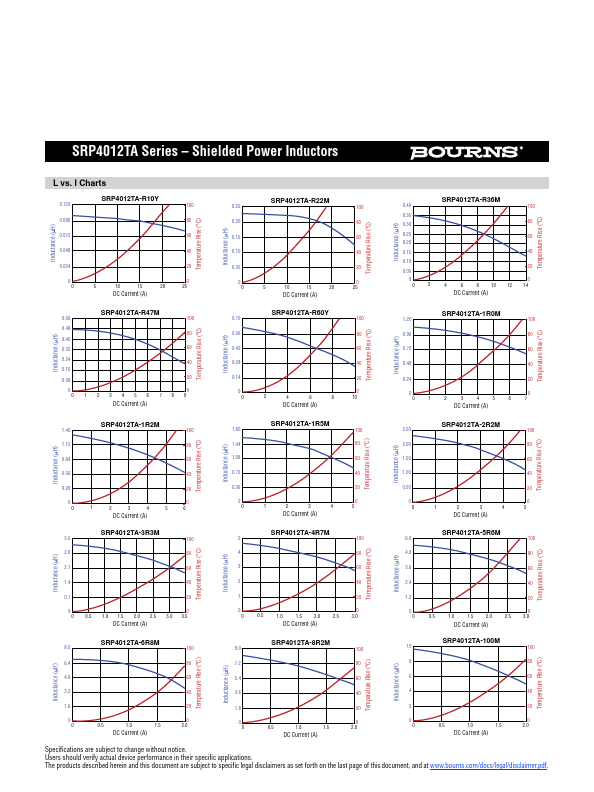

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SRP4012TA
Manufacturer
Bourns
File Size
271.20 KB
Datasheet
SRP4012TA-Bourns.pdf
Description
Shielded Power Inductors
