UM3481 Datasheet, Generator, Bowin

UM3481 Features

  • Generator
  • Powered by a 1.5V battery
  • Low standby current
  • 512-note memory, up to 16 songs
  • 8 playing modes by user setting
  • One built-in RC oscillato

PDF File Details

Part number:

UM3481

Manufacturer:

Bowin

File Size:

161.38kb

Download:

📄 Datasheet

Description:

Multi-instrument melody generator. The UM3481 series is a mask-ROM-programmed multi-instrument melody generator , implemented by CMOS technology. It is designed to play

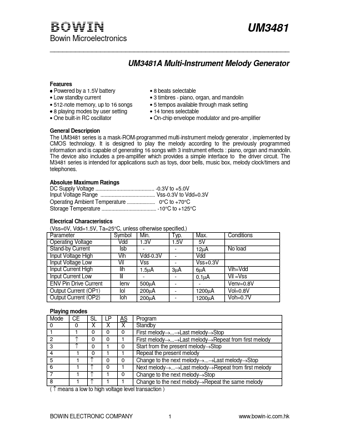

Datasheet Preview: UM3481 📥 Download PDF (161.38kb)
Page 2 of UM3481 Page 3 of UM3481

UM3481 Application

  • Applications such as toys, door bells, music box, melody clock/timers and telephones. Absolute Maximum Ratings DC Supply Voltage -0.3V to +5.0V Inp
