UM3486E, UM3483E Datasheet - Union Semiconductor

UM3486E - True RS-485 Transceivers

The UM3483E, UM3486E are 3V to 5.5V-powered, ±15kV ESD-protected, slew-rate-limited differential transceivers which provide full RS485 compatibility.

Each part contains one driver and one receiver, which is designed for data transmission with extended common mode range (-7V to 12V).

The UM3483E fea

UM3486E Features

* slew-rate-limited driver which minimizes EMI and reduces reflections resulted from improperly terminated cables. The UM3483E allows up to 500kbps error-free data transmission, while the partially slew-rate-limited UM3486E transmits at data rates up to 2.5Mbps. The UM3483E, UM3486E also feature enhan

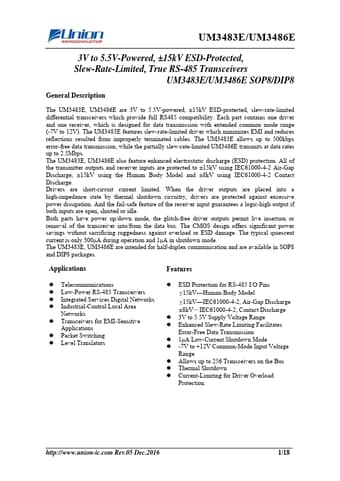

UM3483E-UnionSemiconductor.pdf

This datasheet PDF includes multiple part numbers: UM3486E, UM3483E. Please refer to the document for exact specifications by model.
UM3486E Datasheet Preview Page 2 UM3486E Datasheet Preview Page 3

Datasheet Details

Part number:

UM3486E, UM3483E

Manufacturer:

UniON Semiconductor ↗

File Size:

1.57 MB

Description:

True rs-485 transceivers.

Note:

This datasheet PDF includes multiple part numbers: UM3486E, UM3483E.
Please refer to the document for exact specifications by model.
