T24C64A, T24C32A - EEPROM

BrightMoon Semiconductor

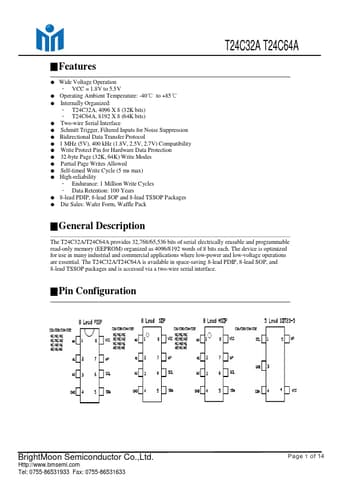

T24C64A Datasheet Preview — This datasheet PDF includes multiple part numbers: T24C64A, T24C32A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	T24C64A, T24C32A
Manufacturer	BrightMoON Semiconductor ↗
File Size	3.61 MB
Description	EEPROM
Datasheet	T24C32A-BrightMoonSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: T24C64A, T24C32A. Please refer to the document for exact specifications by model.

T24C64A Product details

Description

The T24C32A/T24C64A provides 32,768/65,536 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 4096/8192 words of 8 bits each.

Features

Wide Voltage Operation - VCC = 1.8V to 5.5V.
Operating Ambient Temperature: -40℃ to +85℃.
Internally Organized: - T24C32A, 4096 X 8 (32K bits) - T24C64A, 8192 X 8 (64K bits).
Two-wire Serial Interface.
Schmitt Trigger, Filtered Inputs for Noise Suppression.
Bidirectional Data Transfer Protocol.
1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V) Compatibility.
Write Protect Pin for Hardware Data Protection.
32-byte Page (32K, 64K) Write Modes.
Partial Page W.
