T24C512A, T24C512A-First - EEPROM

📥 Download Datasheet

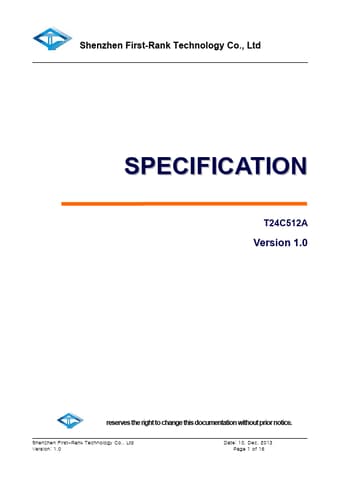

T24C512A Datasheet Preview — This datasheet PDF includes multiple part numbers: T24C512A, T24C512A-First. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	T24C512A, T24C512A-First
Manufacturer	First-Rank Technology
File Size	722.07 KB
Description	EEPROM
Datasheet	T24C512A-First-RankTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: T24C512A, T24C512A-First. Please refer to the document for exact specifications by model.

T24C512A Product details

Description

The T24C512 provides 524,288 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 65,536 words of 8 bits each.

Features

a low-power standby mode which is enabled: (a) upon power-up and (b) after the receipt of the STOP bit and the completion of any internal operations MEMORY RESET: After an interruption in protocol, power loss or system re.
