HDSP-2112 Alphanumeric Displays

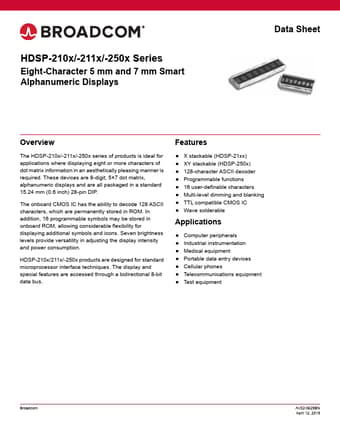

HDSP-210x/-211x/-250x Series Eight-Character 5 mm and 7 mm Smart Alphanumeric Displays Data Sheet Overview The HDSP-210x/-211x/-250x series of products is ideal for applications where displaying eight or more characters of dot matrix information in an aesthetically pleasing manner is required. These devices are 8-digit, 5×7 dot matrix, alphanumeric displays and are all packaged in a standard 15.24 mm (0.6 inch) 28-pin DIP. The onboard CMOS IC has the ability to decode 128 ASCII characters, whi.

HDSP-2112 Features

* are accessed through a bidirectional 8-bit data bus. Features

* X stackable (HDSP-21xx)

* XY stackable (HDSP-250x)

* 128-character ASCII decoder

* Programmable functions

* 16 user-definable characters

* Multi-level dimming and blanking

* TTL compatible CMOS IC

* Wave

HDSP-2107-Broadcom.pdf

HDSP-2112 Datasheet Preview — This datasheet PDF includes multiple part numbers: HDSP-2112, HDSP-2107. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HDSP-2112, HDSP-2107

Manufacturer:

Broadcom

File Size:

852.17 KB

Description:

Alphanumeric displays.

Note:

This datasheet PDF includes multiple part numbers: HDSP-2112, HDSP-2107.
Please refer to the document for exact specifications by model.
