HDSP-210x/-211x/-250x Series Eight-Character 5 mm and 7 mm Smart Alphanumeric Displays Data Sheet Overview The HDSP-210x/-211x/-250x series of produ.

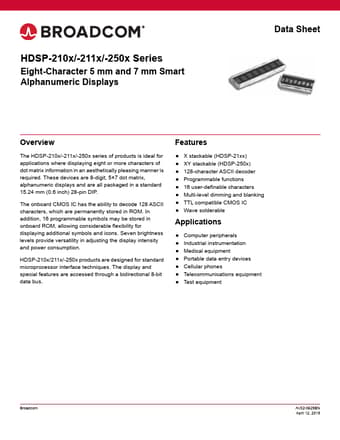

 datasheet Preview Page 1 from Datasheet4u.com

HDSP-2107-Broadcom.pdf

This datasheet PDF includes multiple part numbers: HDSP-2501, HDSP-2107. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HDSP-2501, HDSP-2107

Manufacturer:

Broadcom

File Size:

852.17 KB

Description:

Alphanumeric Displays

Note:

This datasheet PDF includes multiple part numbers: HDSP-2501, HDSP-2107.
Please refer to the document for exact specifications by model.

Features

* are accessed through a bidirectional 8-bit data bus. Features
* X stackable (HDSP-21xx)
* XY stackable (HDSP-250x)
* 128-character ASCII decoder
* Programmable functions
* 16 user-definable characters
* Multi-level dimming and blanking
* TTL compatible CMOS IC
* Wave

Applications

* where displaying eight or more characters of dot matrix information in an aesthetically pleasing manner is required. These devices are 8-digit, 5×7 dot matrix, alphanumeric displays and are all packaged in a standard 15.24 mm (0.6 inch) 28-pin DIP. The onboard CMOS IC has the ability to decode 128 A
