HDSP-2530 Smart Alphanumeric Display

The HDSP-253x is ideal for applications where displaying eight or more characters of dot matrix information in an aesthetically pleasing manner is required. These devices are eight-digit, 5 x 7 dot matrix, alphanumeric displays. The 5.0 mm (0.2 inch) high characters are packaged in a 0.300 inch (.

HDSP-2530 Features

* are accessed through a bidirectional eight-bit data bus. Features

* XY stackable

* 128 character ASCII decoder

* Programmable functions

* 16 user definable characters

* Multi-level dimming and blanking

* TTL compatible CMOS IC

* Wave s

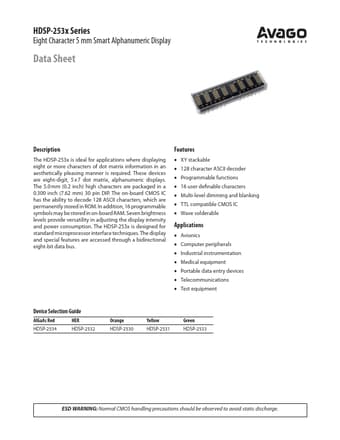

HDSP-2534-AVAGO.pdf

HDSP-2530 Datasheet Preview — This datasheet PDF includes multiple part numbers: HDSP-2530, HDSP-2534. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HDSP-2530, HDSP-2534

Manufacturer:

AVAGO

File Size:

762.50 KB

Description:

Smart alphanumeric display.

Note:

This datasheet PDF includes multiple part numbers: HDSP-2530, HDSP-2534.
Please refer to the document for exact specifications by model.
