HDSP-2531

Eight Character 5 mm Smart Alphanumeric Display

HDSP-2531 Features

* XY Stackable

* 128 Character ASCII Decoder

* Programmable Functions

* 16 User Definable Characters

* Multi-Level Dimming and Blanking

* TTL Compatible CMOS IC

* Wave Solderable Applications

* Avionics

* Computer Peripherals

HDSP-2531 General Description

The HDSP-253x is ideal for applications where displaying eight or more characters of dot matrix information in an aesthetically pleasing manner is required. These devices are eightdigit, 5 x 7 dot matrix, alphanumeric displays. The 5.0 mm (0.2 inch) high characters are packaged in a 0.300 inch (7.62.

HDSP-2531 Datasheet (244.57 KB)

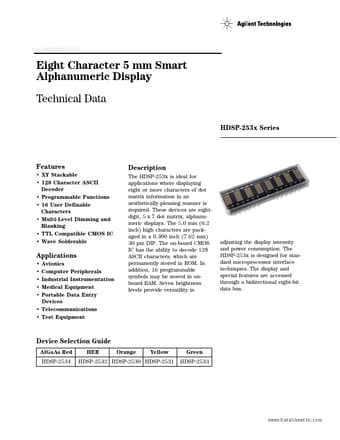

Preview of HDSP-2531 PDF

Datasheet Details

Part number:

HDSP-2531

Manufacturer:

Agilent

File Size:

244.57 KB

Description:

Eight character 5 mm smart alphanumeric display.
