HDSP-2534 Eight Character 5 mm Smart Alphanumeric Display

The HDSP-253x is ideal for applications where displaying eight or more characters of dot matrix information in an aesthetically pleasing manner is required. These devices are eightdigit, 5 x 7 dot matrix, alphanumeric displays. The 5.0 mm (0.2 inch) high characters are packaged in a 0.300 inch (7.62.

HDSP-2534 Features

* XY Stackable

* 128 Character ASCII Decoder

* Programmable Functions

* 16 User Definable Characters

* Multi-Level Dimming and Blanking

* TTL Compatible CMOS IC

* Wave Solderable Applications

* Avionics

* Computer Peripherals

HDSP-253x_Agilent.pdf

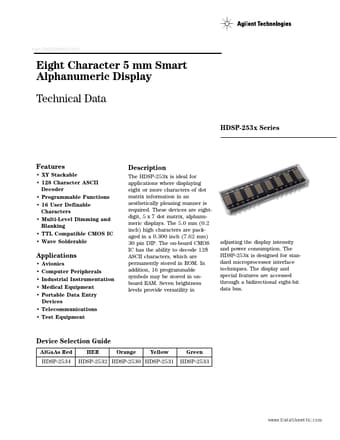

HDSP-2534 Datasheet Preview — This datasheet PDF includes multiple part numbers: HDSP-2534, HDSP-253x. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HDSP-2534, HDSP-253x

Manufacturer:

Agilent

File Size:

244.57 KB

Description:

Eight character 5 mm smart alphanumeric display.

Note:

This datasheet PDF includes multiple part numbers: HDSP-2534, HDSP-253x.
Please refer to the document for exact specifications by model.
