ESD0504 - Low Capacitance TVS Array

ESD0504 Description

ESD0504/ESD0503 Low Capacitance TVS Array General .
Features ESD0504/ESD0503　 are surge rated diode z Array of surge rated diodes with internal TVS arrays designed to protect high speed data Diode.

ESD0504 Features

* ESD0504/ESD0503　 are surge rated diode z Array of surge rated diodes with internal TVS arrays designed to protect high speed data Diode interfaces. This series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage cause

ESD0504 Applications

* z USB 2.0 z USB OTG z Monitors and Flat Panel Displays z Digital Visual Interface (DVI) z High-Definition Multimedia Interface (HDMI) z Gigabit Ethernet z SIM Ports z IEEE 1394 Firewire Ports Functional diagram SOT23-6 1. ESD0504/ESD0503 Absolute Ratings Symbol Parameter PPK Peak Pulse P

📥 Download Datasheet

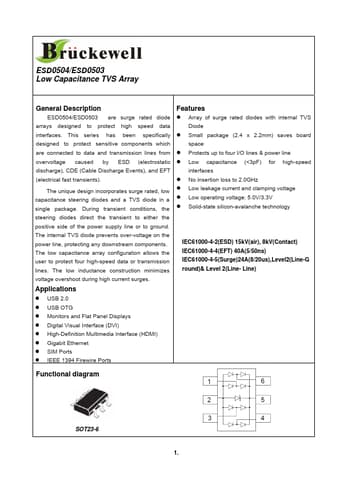

Preview of ESD0504 PDF
