ESD3Z5C - Transient Voltage Suppressors

Description

components from ESD and transient voltage events.

premium.

Features

  • Small Body Outline Dimensions.
  • Low Body Height.
  • Peak Power up to 350 Watts @ 8 x 20 μs Pulse.
  • Low Leakage current.
  • Response Time is Typically < 1 ns.
  • ESD Rating of Class 3 (> 16 kV) per Human Body Model.
  • RoHS compliant package Complies with the following standards IEC61000-4-2 Level 4 15 kV (air discharge) 8 kV(contact discharge) MIL STD 883E - Method 3015-7 Class 3 25 kV HBM (Human Body Model).

📥 Download Datasheet

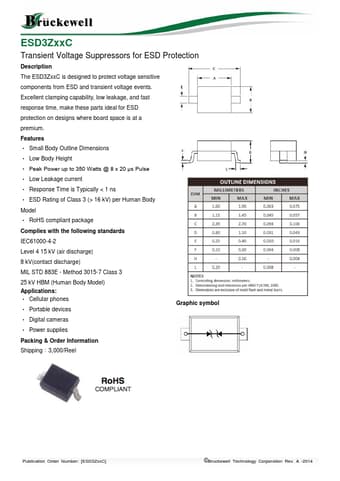

Datasheet preview – ESD3Z5C

Datasheet Details

Part number ESD3Z5C
Manufacturer Bruckewell
File Size 393.25 KB
Description Transient Voltage Suppressors
Datasheet download datasheet ESD3Z5C Datasheet
Additional preview pages of the ESD3Z5C datasheet.

📁 Similar Datasheet

  • ESD3Z5.0 - Transient Voltage Suppressors (AK Semiconductor)
  • ESD3Z5.0 - SMD Transient Voltage Suppressor (Formosa MS)
  • ESD3Z5.0 - TRANSIENT VOLTAGE SUPPRESSORS (AiT Semiconductor)
  • ESD3Z5.0A - 1-Line Unidirectional ESD Protection Diode (DIOS)
  • ESD3Z5.0C-Q1 - Surface Mount Bi-Directional TVS (ANBON)
  • ESD3Z5.0CMT1G - Transient Voltage Suppressors (Semiteh)
  • ESD3Z5.0D - Ultra Low Capacitance ESD Protection Diode (Rectron)
  • ESD3Z5V0BWS - ESD Protection Diode (Semtech)
  • ESD3Z12 - Transient Voltage Suppressors (AK Semiconductor)
  • ESD3Z12 - SMD Transient Voltage Suppressor (Formosa MS)
Other Datasheets by Bruckewell

Full PDF Text Transcription

Click to expand full text
ESD3ZxxC Transient Voltage Suppressors for ESD Protection Description The ESD3ZxxC is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium.
