ESD3Z5.0 - SMD Transient Voltage Suppressor

Download the ESD3Z5.0 datasheet PDF. This datasheet also covers the ESD3Z3.3 variant, as both devices belong to the same smd transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • 2 Mechanical data 2 Maximum ratings 2 Electrical characteristics 2 Rating and characteristic curves 3 Pinning information 4 Marking 4 Suggested solder pad layout 4 Packing information 5 Reel packing 6 Suggested thermal profiles for soldering processes 6 High reliability test capabilities 7 http://www. formosams. com/ TEL:886-2-22696661 FAX:886-2-22696141 Page 1 Document ID Issued Date DS-221827 2009/08/10 Revised Date 2013/07/05 Revision E Page. 7 SMD Transient Voltage Suppressor For ESD P.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ESD3Z3.3-FormosaMS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ESD3Z5.0
Manufacturer Formosa MS
File Size 141.50 KB
Description SMD Transient Voltage Suppressor
Datasheet download datasheet ESD3Z5.0 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ESD3Z5.0 Transient Voltage Suppressors AK Semiconductor
ESD3Z5.0 TRANSIENT VOLTAGE SUPPRESSORS AiT Semiconductor
ESD3Z5.0A 1-Line Unidirectional ESD Protection Diode DIOS
ESD3Z5.0C-Q1 Surface Mount Bi-Directional TVS ANBON
ESD3Z5.0CMT1G Transient Voltage Suppressors Semiteh

Other Datasheets by Formosa MS

Part Number Description
ESD3Z12 SMD Transient Voltage Suppressor
ESD3Z15 SMD Transient Voltage Suppressor
ESD3Z24 SMD Transient Voltage Suppressor
ESD3Z3.3 SMD Transient Voltage Suppressor
ESD3Z36 SMD Transient Voltage Suppressor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

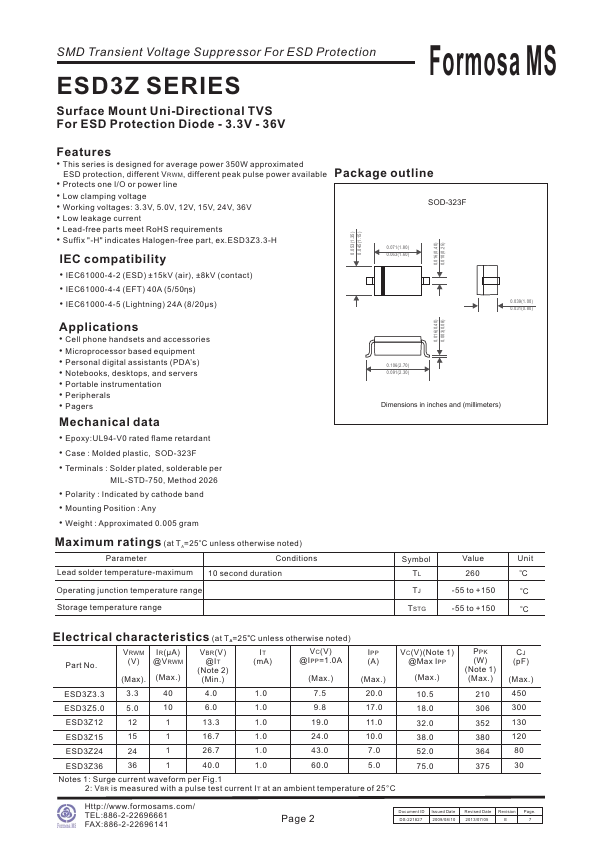

SMD Transient Voltage Suppressor For ESD Protection ESD3Z SERIES Formosa MS List List................................................................................................. 1 Package outline............................................................................... 2 Features.......................................................................................... 2 Mechanical data............................................................................... 2 Maximum ratings ............................................................................. 2 Electrical characteristics................................................................... 2 Rating and characteristic curves........................................................ 3 Pinning information................
