P6KE6.8C Transient Voltage Suppressors

Bruckewell

Description

P6KE6.8C-600CA VBR : 6.8 - 600 Volts PPK : 600 Watts .

📥 Download Datasheet

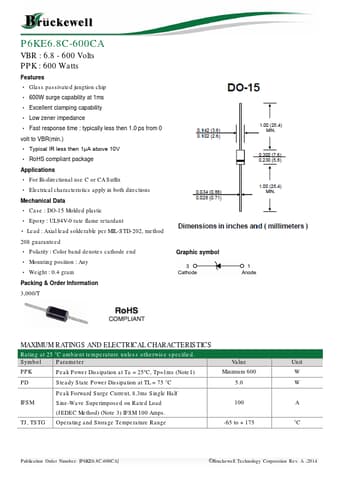

P6KE6.8C Datasheet Preview — Preview of P6KE6.8C PDF

Datasheet Specifications

Part number: P6KE6.8C
Manufacturer: Bruckewell
File Size: 574.90 KB
Datasheet: P6KE6.8C-Bruckewell.pdf
Description: Transient Voltage Suppressors

Features

* Glass passivated jungtion chip
* 600W surge capability at 1ms
* Excellent clamping capability
* Low zener impedance
* Fast response time : typically less then 1.0 ps from 0 volt to VBR(min. )
* Typical IR less then 1μA above 10V
* RoHS complia

Applications

* For Bi-directional use C or CA Suffix
* Electrical characteristics apply in both directions Mechanical Data
* Case : DO-15 Molded plastic
* Epoxy : UL94V-0 rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202, method 208 guaranteed
* P
