SUF503C, SUF501C Surface Mount Super Fast Recovery Rectifiers

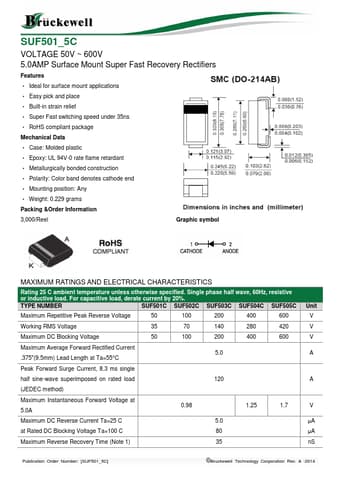

📥 Download Datasheet  Datasheet Preview Page 1

Description

SUF501_5C VOLTAGE 50V ~ 600V 5.0AMP Surface Mount Super Fast Recovery Rectifiers .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SUF503C, SUF501C. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SUF503C, SUF501C
Manufacturer
Bruckewell
File Size
347.75 KB
Datasheet
SUF501C-Bruckewell.pdf
Description
Surface Mount Super Fast Recovery Rectifiers
Note
This datasheet PDF includes multiple part numbers: SUF503C, SUF501C.
Please refer to the document for exact specifications by model.

Applications

* Easy pick and place
* Built-in strain relief
* Super Fast switching speed under 35ns
* RoHS compliant package Mechanical Data
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Metallurgically bonded construction
