ADS1100

16-Bit ANALOG-TO-DIGITAL CONVERTER

Burr-Brown Corporation

ADS1100 Features

* q COMPLETE DATA ACQUISITION SYSTEM IN A TINY SOT23-6 PACKAGE q 16-BITS NO MISSING CODES q INL: 0.0125% of FSR MAX q CONTINUOUS SELF-CALIBRATION q SINGLE-CYCLE CONVERSION q PROGRAMMABLE GAIN AMPLIFIER GAIN = 1, 2, 4, OR 8 q LOW NOISE: 4µVp-p q PROGRAMMABLE DATA RATE: 8SPS to 128SPS q INTERNAL SYSTEM

ADS1100 General Description

The ADS1100 is a precision, continuously self-calibrating Analog-to-Digital (A/D) converter with differential inputs and up to 16 bits of resolution in a small SOT23-6 package. Conversions are performed ratiometrically, using the power supply as the reference voltage. The ADS1100 uses an I2C-compati.

ADS1100 Datasheet (0.98 MB)

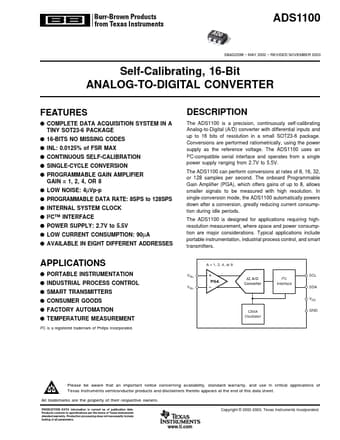

ADS1100 Datasheet Preview — Preview of ADS1100 PDF

Datasheet Details

Part number:

ADS1100

Manufacturer:

Burr-Brown Corporation

File Size:

0.98 MB

Description:

16-bit analog-to-digital converter.
