ADS1113-Q1 16-Bit ADC

ADS1113-Q1 Description

Product Folder Order Now Technical Documents Tools & Software Support & Community ADS1113-Q1, ADS1114-Q1, ADS1115-Q1 SBAS563D * DECEMBER .
The ADS1113-Q1, ADS1114-Q1, and ADS1115-Q1 devices (ADS111x-Q1) are precision, low-power, 16bit, I2C-compatible, analog-to-digital converters (ADCs.

ADS1113-Q1 Applications

* AEC-Q100 Qualified With the Following Results:
* Temperature Grade 1:
* 40°C to +125°C
* HBM ESD Classification 2
* CDM ESD Classification C4B
* Wide Supply Range: 2.0 V to 5.5 V
* Low Current Consumption: 150 μA (Continuous-Conversion Mode)

📥 Download Datasheet

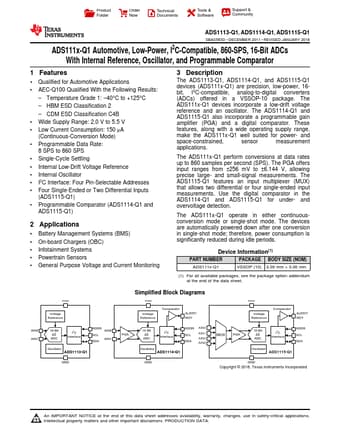

Preview of ADS1113-Q1 PDF
datasheet Preview Page 2 datasheet Preview Page 3
