ADS1000

12-Bit ANALOG-TO-DIGITAL CONVERTER

ADS1000 Features

* 1

* 23 Complete 12-Bit Data Acquisition System in a Tiny SOT-23 Package

* Low Current Consumption: Only 90μA

* Integral Nonlinearity: 1LSB Max

* Single-Cycle Conversion

* Programmable Gain Amplifier Gain = 1, 2, 4, or 8

* 128SPS Data Rate

* I2C

ADS1000 General Description

The ADS1000 is an I2C-compatible serial interface Analog-to-Digital (A/D) converter with differential inputs and 12 bits of resolution in a tiny SOT23-6 package. Conversions are performed ratiometrically, using the power supply as the reference voltage. The ADS1000 operates from a single power suppl.

ADS1000 Datasheet (973.54 KB)

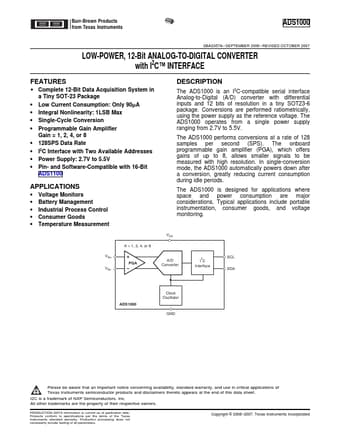

Preview of ADS1000 PDF

Datasheet Details

Part number:

ADS1000

Manufacturer:

Burr-Brown

File Size:

973.54 KB

Description:

12-bit analog-to-digital converter.
BurrĆBrown Products BD0 from Texas Instruments ADS1000 SBAS357A

* SEPTEMBER 2006

* REVISED OCTOBER 2007 LOW-POWER, 12-Bit ANALOG-T.
