ADS1014-Q1, ADS1013-Q1 12-Bit ADC

ADS1014-Q1 Description

ADS1013-Q1, ADS1014-Q1, ADS1015-Q1 SBAS511E * JULY 2010 * REVISED JULY 2023 ADS101x-Q1 Automotive, Low-Power, I2C-Compatible, 3.3-kSPS.
The ADS1013-Q1, ADS1014-Q1, and ADS1015-Q1 (ADS101x-Q1) are precision, low-power, 12-bit, I2C-compatible, analog-to-digital converters (ADCs) offered.

ADS1014-Q1 Applications

* Temperature grade 1:
* 40°C to +125°C, TA
* Functional Safety-Capable
* Documentation available to aid functional safety system design
* Noise-free resolution: 12 bit
* Wide supply range: 2.0 V to 5.5 V
* Low current consumption: 150 μA (cont

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ADS1014-Q1, ADS1013-Q1. Please refer to the document for exact specifications by model.

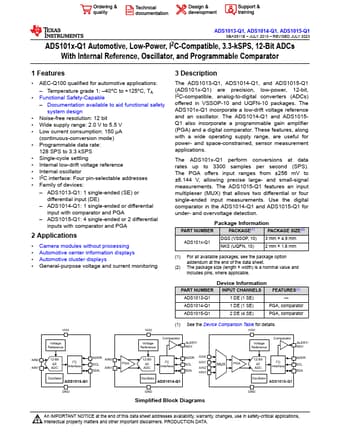

datasheet Preview Page 2 datasheet Preview Page 3
