ADS1013

12-Bit ADC

Texas Instruments

ADS1013 Features

* Ultra-small packages:

* X2QFN: 1.5mm × 2mm × 0.4mm

* SOT: 2.9mm × 2.8mm × 0.6mm

* Noise-free resolution: 12 bits

* Wide supply range: 2.0V to 5.5V

* Low current consumption: 150μA (continuous-conversion mode)

* Programmable data rate: 128SPS

ADS1013 General Description

The ADS1013, ADS1014, and ADS1015 (ADS101x) are precision, low-power, 12-bit, I2C-compatible, analog-to-digital converters (ADCs) offered in a leadless X2QFN-10, a SOT-10, and a VSSOP-10 package. The ADS101x incorporates a low-drift voltage reference and an oscillator. The ADS1014 and ADS1015 also .

ADS1013 Datasheet (1.63 MB)

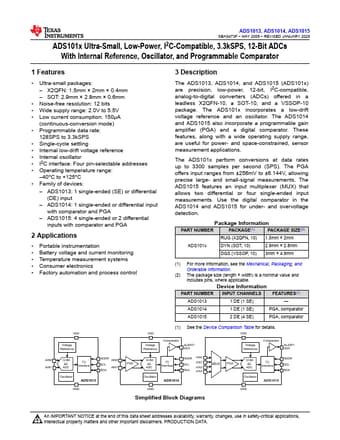

ADS1013 Datasheet Preview — Preview of ADS1013 PDF

Datasheet Details

Part number:

ADS1013

Manufacturer:

Texas Instruments ↗

File Size:

1.63 MB

Description:

12-bit adc.
ADS1013, ADS1014, ADS1015 SBAS473F

* MAY 2009

* REVISED JANUARY 2025 ADS101x Ultra-Small, Low-Power, I2C-Compatible, 3.3kSPS, 12-Bit A.
