ADS1014, ADS1013 12-Bit ADC

ADS1014 Description

ADS1013, ADS1014, ADS1015 SBAS473F * MAY 2009 * REVISED JANUARY 2025 ADS101x Ultra-Small, Low-Power, I2C-Compatible, 3.3kSPS, 12-Bit A.
The ADS1013, ADS1014, and ADS1015 (ADS101x) are precision, low-power, 12-bit, I2C-compatible, analog-to-digital converters (ADCs) offered in a leadle.

ADS1014 Features

* Ultra-small packages:
* X2QFN: 1.5mm × 2mm × 0.4mm
* SOT: 2.9mm × 2.8mm × 0.6mm
* Noise-free resolution: 12 bits
* Wide supply range: 2.0V to 5.5V
* Low current consumption: 150μA (continuous-conversion mode)
* Programmable data rate: 128SPS

ADS1014 Applications

* Portable instrumentation
* Battery voltage and current monitoring
* Temperature measurement systems
* Consumer electronics

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ADS1014, ADS1013. Please refer to the document for exact specifications by model.

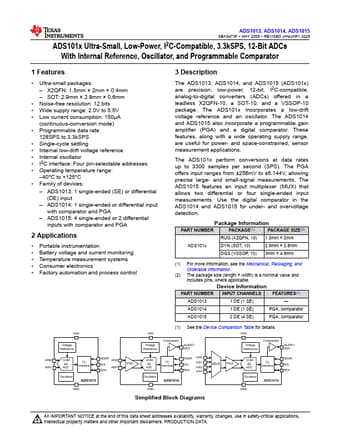

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ADS1014, ADS1013
Manufacturer
Texas Instruments ↗
File Size
1.63 MB
Datasheet
ADS1013-etcTI.pdf
Description
12-Bit ADC
Note
This datasheet PDF includes multiple part numbers: ADS1014, ADS1013.
Please refer to the document for exact specifications by model.
